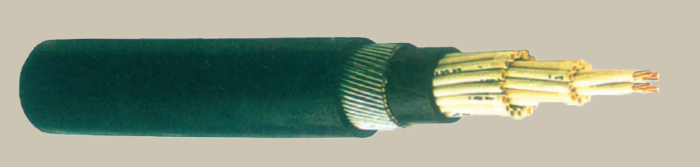

Halogen Free 1.5 Sq.mm. Multi Core Armoured Control Cables To BS 6724(Cu/XLPE/LSF/SWA/LSF)
600/1000V-Armoured Auxiliary cables (Control Cables) To BS 6724
Copper Conductor
XLPE Insulated steel wire armoured
LSF Bedded and LSF sheathedcables
(Cu/XLPE/LSF/SWA/LSF):Size: 1.5SQMM
| Number of Cores |
Maximum Conductor Resistance at 20°C |
Thickness of Insulation |
Thickness of Extruded Bedding |
Dia. of Armour wire |
Thickness of Outer Sheath |
Approx.Overall Diameter |
Approx.Cable weight |
Standard Packaging length |
Drum Size |
Approx. Gross weight |
| No. |
Ohm/Km |
mm |
mm |
mm |
mm |
mm |
Kg/Km |
Metre±5% |
|
KG |
| 5* |
12.1 |
0.7 |
0.8 |
0.9 |
1.4 |
15.7 |
450 |
1000 |
D-11 |
550 |
| 7 |
12.1 |
0.7 |
0.8 |
0.9 |
1.4 |
16.7 |
510 |
1000 |
D-11 |
610 |
| 12 |
12.1 |
0.7 |
0.8 |
1.25 |
1.5 |
21.4 |
845 |
500 |
D-10 |
485 |
| 19 |
12.1 |
0.7 |
0.8 |
1.25 |
1.6 |
24.4 |
1080 |
500 |
D-12 |
650 |
| 27 |
12.1 |
0.7 |
1.0 |
1.6 |
1.7 |
29.5 |
1590 |
500 |
D-12 |
905 |
| 37 |
12.1 |
0.7 |
1.0 |
1.6 |
1.7 |
32.5 |
1900 |
500 |
D-16 |
1160 |
| 48 |
12.1 |
0.7 |
1.0 |
1.6 |
1.8 |
36.5 |
2300 |
500 |
D-18 |
1390 |
| 61** |
12.1 |
0.7 |
1.2 |
2.0 |
2.1 |
40.9 |
3010 |
500 |
D-18 |
1750 |
| 91** |
12.1 |
0.7 |
1.2 |
2.0 |
2.2 |
47.7 |
3970 |
500 |
D-19 |
2310 |
All conductors circular stranded (class2).
* 5 core cables,core colour,by red,Yellow,Blue,Black& Green.
All other cables,core identification by numbre printing on white cores.
* Cables conform generally to BS 6724 and IEC 60502-1
