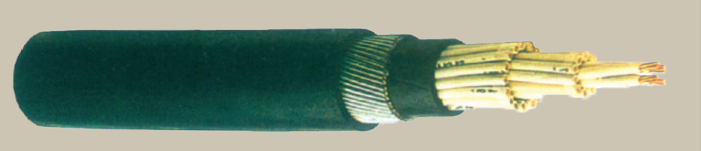

600/1000V-Armoured Auxiliary cables (Control Cables) To BS 6724

Copper Conductor

XLPE Insulated steel wire armoured

LSF Bedded and LSF sheathed cables

(Cu/XLPE/LSF/SWA/LSF): Size: 2.5 SQMM

Number of Cores	Maximum Conductor Resistance at 20°C	Thickness of Insulation	Thickness of Extruded Bedding	Dia. of Armour wire	Thickness of Outer Sheath	Approx.Overall Diameter	Approx.Cable weight	Standard Packaging length	Drum Size	Approx. Gross weight
No.	Ohm/Km	mm	mm	mm	mm	mm	Kg/Km	Metre±5%		KG
5*	7.41	0.7	0.8	0.9	1.4	16.8	530	1000	D-11	630
7	7.41	0.7	0.8	0.9	1.4	17.9	615	1000	D-12	725
12	7.41	0.7	0.8	1.25	1.6	23.3	1030	500	D-11	615
19	7.41	0.7	1.0	1.6	1.7	27.7	1520	500	D-12	870
27	7.41	0.7	1.0	1.6	1.8	32.2	1950	500	D-16	1190
37	7.41	0.7	1.0	1.6	1.8	35.3	2360	500	D-18	1420
48	7.41	0.7	1.2	2.0	2.0	41.4	3230	500	D-18	1860
61**	7.41	0.7	1.2	2.0	2.2	44.7	3760	500	D-18	2120
91**	7.41	0.7	1.4	2.5	2.4	53.9	5540	500	D-21	3190

All conductors circular stranded (class2).

* 5 core cables,core colour by red,Yellow,Blue,Black & Green.

All other cables,core identification by number printing on white cores.

**Cables conform generally to BS 6724 and IEC 60502-1
