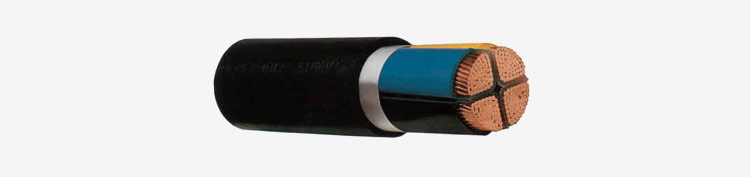

Four Core Cables Cu/XLPE/PVC
600/1000 V - FOUR CORE
Copper Conductor XLPE Insulated
PVC Sheathed Cables
(Cu/XLPE/PVC)
| Nominal Area of Conductor |
Maximum Conductor Resistance at 20°C |
Thickness of Insulation |
Thickness of Outer Sheath |
Approx. Overall Diameter |
Approx. Cable Weight |
Standard Packing Length |
Drum Size |
Approx. Gross Weight |
| Sqmm |
Ohm/Km |
mm |
mm |
mm |
Kg/Km |
Metre ±10% |
|
Kg |
| 1.5* |
12.1 |
0.7 |
1.8 |
12.1 |
195 |
1000 |
D-9 |
255 |
| 1.5 |
12.1 |
0.7 |
1.8 |
12.6 |
205 |
1000 |
D-9 |
265 |
| 2.5* |
7.41 |
0.7 |
1.8 |
13.1 |
245 |
1000 |
D-10 |
305 |
| 2.5 |
7.41 |
0.7 |
1.8 |
13.6 |
260 |
1000 |
D-10 |
320 |
| |
| 4 |
4.61 |
0.7 |
1.8 |
14.8 |
335 |
1000 |
D-10 |
395 |
| 6 |
3.08 |
0.7 |
1.8 |
16.2 |
435 |
1000 |
D-11 |
535 |
| 10 |
1.83 |
0.7 |
1.8 |
18.6 |
615 |
1000 |
D-12 |
725 |
| |
| 16 |
1.15 |
0.7 |
1.8 |
21.1 |
880 |
1000 |
D-12 |
990 |
| 25 |
0.727 |
0.9 |
1.8 |
22.0 |
1220 |
500 |
D-10 |
670 |
| 35 |
0.524 |
0.9 |
1.8 |
25.4 |
1620 |
500 |
D-12 |
920 |
| |
| 50 |
0.387 |
1.0 |
1.8 |
28.3 |
2100 |
500 |
D-12 |
1160 |
| 70 |
0.268 |
1.1 |
2.0 |
32.1 |
2930 |
500 |
D-16 |
1680 |
| 95 |
0.193 |
1.1 |
2.1 |
36.3 |
3950 |
500 |
D-18 |
2220 |
| |
| 120 |
0.153 |
1.2 |
2.3 |
39.9 |
4940 |
500 |
D-18 |
2710 |
| 150 |
0.124 |
1.4 |
2.4 |
44.8 |
6150 |
500 |
D-18 |
3320 |
| 185 |
0.0991 |
1.6 |
2.6 |
49.7 |
7600 |
250 |
D-16 |
2110 |
| |
| 240 |
0.0754 |
1.7 |
2.8 |
54.8 |
9730 |
250 |
D-18 |
2670 |
| 300 |
0.0601 |
1.8 |
3.0 |
60.6 |
12190 |
250 |
D-18 |
3290 |
| 400 |
0.0470 |
2.0 |
3.3 |
68.0 |
15690 |
200 |
D-18 |
3380 |
| |
| 500 |
0.0366 |
2.2 |
3.5 |
76.9 |
19600 |
200 |
D-19 |
4240 |
* Circular solid conductors (Class 1).
Conductors including 16 Sqmm circular stranded (Class 2).
25 Sqmm and above shaped stranded conductors (Class 2).
Cables conform to IEC 60502 - 1.
