Description :

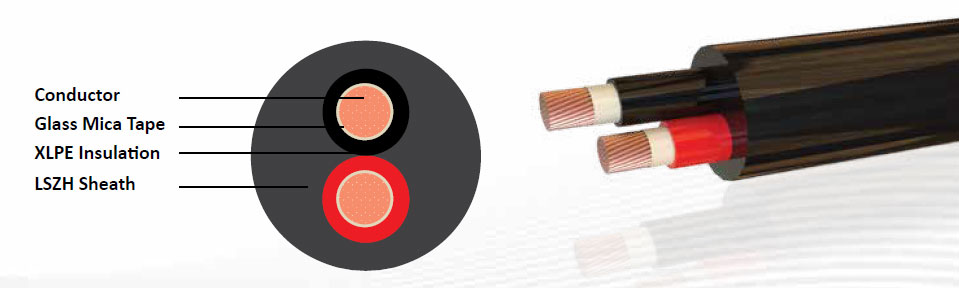

Stranded copper conductor, Mica Glass tape & XLPE Insulated and LSZH outer sheathed cable.
Core Colour : Red, Black - Sheath Colour : Black

Standards :

Construction : IEC 60502-1 (FOR ALL SIZE), BS 8573 (UPTO 120 SQ.MM.)

Testing : BS 6387, BS EN / IEC 60754, BS EN / IEC 61034, IEC 60331-21

Installation Condition:

* In free air or on a perforated cable tray

* Ambient Air Temperature : 30°C

* Conductor operating Temperature : 90°C

All conductors circular stranded or circular stranded compacted (class 2).
Cable construction to other standard and other core/sheath colour available upon request

Cable Size	Approximate Diameter		Nominal Insulation Thickness	Approx. Cable Weight	Standard Packing Length (± 5%)	Maximum Conductor Resistance at 20°C	Current Rating in Free Air*
Cable Size	Over Conductor	Overall	Nominal Insulation Thickness	Approx. Cable Weight	Standard Packing Length (± 5%)	Maximum Conductor Resistance at 20°C	Current Rating in Free Air*
Sqmm	mm	mm	mm	Kg/Km	Meter	Ohm/Km	A
1.5	1.55	11.8	0.7	185	1000	12.1	26
2.5	1.98	12.6	0.7	220	1000	7.41	36
4	2.52	13.8	0.7	275	1000	4.61	49
6	3.08	14.8	0.7	335	1000	3.08	63
10	3.8	16.4	0.7	450	1000	1.83	86
16	4.9	18.6	0.7	615	1000	1.15	115
25	6.0	21.9	0.9	750	500	0.727	149
35	7.1	24.1	0.9	970	500	0.524	185
50	8.2	26.7	1.0	1250	500	0.387	225
70	9.8	30.3	1.1	1695	500	0.268	289
95	11.4	33.9	1.1	2260	500	0.193	352
120	12.8	37.3	1.2	2780	500	0.153	410
150	14.2	41.1	1.4	3415	500	0.124	473
185	15.9	45.5	1.6	4245	500	0.0991	542
240	18.5	51.5	1.7	5470	250	0.0754	641
300	20.6	56.5	1.8	6795	250	0.0601	741
400	23.3	63.1	2.0	8620	200	0.0470	865
