شركة الخليج للكابلات والصناعات الكهربائية

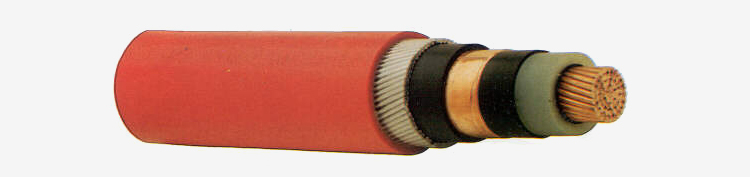

12.7/22 KV - SINGLE CORE

(HIGHEST SYSTEM VOLTAGE - 24 KV)

COPPER CONDUCTOR XLPE INSULATED

COPPER TAPE SCREENED

ALUMINIUM WIRE ARMOURED

PVC SHEATHED CABLES

(CU/SC/XLPE/SC/CUT/PVC/AWA/PVC)

Area of Conductor Nominal	DC Conductor Resistance at 20°C Maximum	Conductor Diameter Approx	Thickness of XLPE Insulation Nominal	Thickness of Extruded Bedding Nominal	Dia of Armour Wire Nominal	Thickness of Outer Sheath Nominal	Overall Diameter Approx	Cable Weight Approx	Standard Packing Length	Drum Size	Gross Weight Approx
Sqmm	Ohm/Km	mm	mm	mm	mm	mm	mm	Kg/Km	Metre±5%		Kg
35	0.524	7.1	5.5	1.2	1.6	1.9	30.0	1205	1000	D-18	1445
50	0.387	8.2	5.5	1.2	1.6	2.0	31.3	1380	1000	D-18	1620
70	0.268	9.8	5.5	1.2	2.0	2.0	33.7	1710	1000	D-18	1950

95	0.193	11.4	5.5	1.2	2.0	2.1	35.5	2030	1000	D-19	2350
120	0.153	12.8	5.5	1.2	2.0	2.1	36.9	2300	500	D-18	1390
150	0.124	14.2	5.5	1.2	2.0	2.2	38.6	2655	500	D-18	1565

185	0.0991	15.9	5.5	1.2	2.0	2.3	40.5	3080	500	D-18	1780
240	0.0754	18.5	5.5	1.2	2.0	2.3	43.1	3700	500	D-18	2090
300	0.0601	20.6	5.5	1.3	2.5	2.5	46.8	4550	500	D-19	2595

400	0.0470	23.3	5.5	1.3	2.5	2.6	49.9	5475	500	D-19	3060
500	0.0366	26.5	5.5	1.4	2.5	2.7	53.5	6655	500	D-19	3645
630	0.0283	30.0	5.5	1.5	2.5	2.8	57.4	8100	250	D-18	2265

800	0.0221	34.4	5.5	1.5	2.5	2.9	62.0	9915	250	D-18	2720
1000	0.0176	38.5	5.5	1.6	2.5	3.0	66.5	12060	250	D-18	3255

All conductors circular compacted.
Equivalant voltage designation as per IEC: 60502-2 : 12/20 KV.
Cables conform to IEC 60502 - 2.
