شركة الخليج للكابلات والصناعات الكهربائية

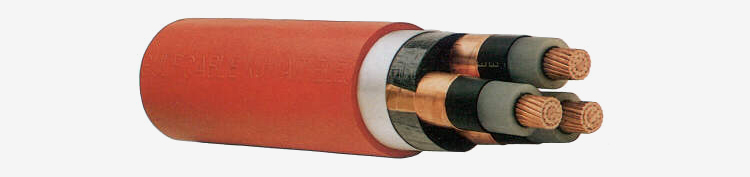

6.35/11 KV - THREE CORE

(HIGHEST SYSTEM VOLTAGE - 12 KV)

COPPER CONDUCTOR XLPE INSULATED

COPPER TAPE SCREENED

PVC SHEATHED CABLES

(CU/SC/XLPE/SC/CUT/PVC)

Area of Conductor Nominal	DC Conductor Resistance at 20°C Maximum	Conductor Diameter Approx	Thickness of XLPE Insulation Nominal	Thickness of Outer Sheath Nominal	Overall Diameter Approx	Cable Weight Approx	Standard Packing Length	Drum Size	Gross Weight Approx
Sqmm	Ohm/Km	mm	mm	mm	mm	Kg/Km	Metre±5%		Kg
35	0.524	7.1	3.4	2.3	40.3	2035	500	D-18	1260
50	0.387	8.2	3.4	2.4	42.9	2480	500	D-18	1480
70	0.268	9.8	3.4	2.5	46.6	3185	500	D-19	1915

95	0.193	11.4	3.4	2.6	50.2	4040	500	D-19	2340
120	0.153	12.8	3.4	2.7	53.4	4815	500	D-19	2730
150	0.124	14.2	3.4	2.8	56.7	5720	250	D-18	1670

185	0.0991	15.9	3.4	2.9	60.5	6910	250	D-18	1970
240	0.0754	18.5	3.4	3.1	66.5	8705	250	D-18	2415
300	0.0601	20.6	3.4	3.3	71.7	10725	250	D-21	3100

400	0.0470	23.3	3.4	3.5	78.4	13390	250	D-21	3770

All conductors circular compacted.
Equivalent voltage designation as per IEC 60502 - 2 : 6/10 KV.
Cables conform to IEC 60502 - 2.
