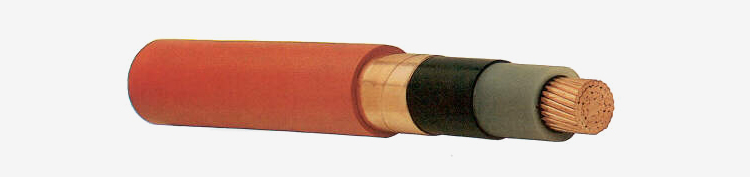

6.35/11 KV - SINGLE CORE

(HIGHEST SYSTEM VOLTAGE - 12 KV)

COPPER CONDUCTOR XLPE INSULATED

COPPER TAPE SCREENED

PVC SHEATHED CABLES

(CU/SC/XLPE/SC/CUT/PVC/AWA/PVC)

Area of Conductor Nominal	DC Conductor Resistance at 20°C Maximum	Conductor Diameter Approx	Thickness of XLPE Insulation Nominal	Thickness of Outer Sheath Nominal	Overall Diameter Approx	Cable Weight Approx	Standard Packing Length	Drum Size	Gross Weight Approx
Sqmm	Ohm/Km	mm	mm	mm	mm	Kg/Km	Metre±5%		Kg
35	0.524	7.1	3.4	1.6	19.6	620	1000	D-12	730
50	0.387	8.2	3.4	1.6	20.7	755	1000	D-12	865
70	0.268	9.8	3.4	1.7	22.5	975	1000	D-14	1125

95	0.193	11.4	3.4	1.7	24.1	1240	1000	D-14	1390
120	0.153	12.8	3.4	1.8	25.7	1490	1000	D-16	1700
150	0.124	14.2	3.4	1.8	27.1	1770	1000	D-18	2010

185	0.0991	15.9	3.4	1.9	29.0	2150	1000	D-18	2390
240	0.0754	18.5	3.4	2.0	31.8	2710	1000	D-18	2950
300	0.0601	20.6	3.4	2.0	34.0	3335	1000	D-18	3575

400	0.0470	23.3	3.4	2.2	37.3	4185	500	D-18	2335
500	0.0366	26.5	3.4	2.2	40.5	5220	500	D-18	2850

630	0.0283	30.0	3.4	2.4	44.4	6550	500	D-18	3515
800	0.0221	34.4	3.4	2.5	49.0	8225	500	D-19	4435
1000	0.0176	38.5	3.4	2.6	53.3	10215	500	D-19	5425

All conductors circular compacted.
Equivalant voltage designation as per IEC: 60502 - 2 : 6/10 KV.
Cables conform to IEC 60502 - 2.
