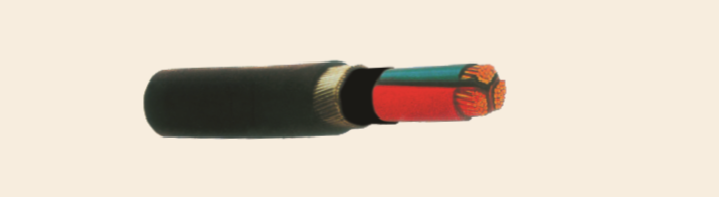

Three Core Cables Cu/PVC/PVC/SWA/PVC & Cu/PVC/SWA/PVC

600/1000 V - THREE CORE
COPPER CONDUCTOR
PVC INSULATED STEEL WIRE ARMOURED
PVC SHEATHED CABLES

(CU/PVC/PVC/SWA/PVC AND CU/PVC/SWA/PVC)


Nominal Area of Conductor   Maximum Conductor Resistance  at 20°C    Thickness of Insulation    Thickness of Bedding Diameter of Armour Wire Thickness of Outer Sheath Approx. Overall Diameter Approx. Cable Weight Standard Packing Length   Drum size   Approx. Gross Weight
Extruded Bedding Lapped Bedding Extruded Bedding Lapped Bedding Extruded Bedding Lapped Bedding Extruded Bedding Lapped Bedding
Sqmm Ohm/Km mm mm mm mm mm Kg/Km Metre± 10%    kg
1.5* 12.1 0.7 0.8 - 0.9 1.4 13.3 - 340 - 1000 D-10 400 -
1.5 12.1 0.7 0.8 - 0.9 1.4 13.7 - 355 - 1000 D-10 415 -
2.5* 7.41 0.8 0.8 - 0.9 1.4 14.6 - 415 - 1000 D-10 475 -
2.5 7.41 0.8 0.8 - 0.9 1.4 15.0 - 435 - 1000 D-10 495 -

4 4.61 0.8 0.8 - 0.9 1.4 16.1 - 515 - 1000 D-11 615 -
6 3.08 0.8 0.8 - 1.25 1.5 18.3 - 720 - 1000 D-12 830 -
10 1.83 1.0 0.8 - 1.25 1.6 20.9 - 960 - 1000 D-12 1070 -

16 1.15 1.0 0.8 - 1.25 1.6 23.2 - 1240 - 1000 D-14 1390 -
25 0.727 1.2 1.0 0.8 1.6 1.7 25.6 24.5 1670 1550 500 D-12 945 858
35 0.524 1.2 1.0 0.8 1.6 1.8 28.1 27.0 2050 1920 500 D-12 1140 1070

50 0.387 1.4 1.0 0.8 1.6 1.9 31.9 30.8 2610 2460 500 D-14 1460 1380
70 0.268 1.4 1.2 0.8 2.0 2.0 35.5 34.0 3570 3360 500 D-16 2030 1890
95 0.193 1.6 1.2 0.8 2.0 2.1 40.3 38.8 4590 4360 500 D-18 2540 2420

120 0.153 1.6 1.2 0.8 2.0 2.2 43.5 42.0 5480 5230 500 D-18 2980 2860
150 0.124 1.8 1.4 0.8 2.5 2.4 47.8 45.9 6940 6600 500 D-19 3790 3620
185 0.0991 2.0 1.4 0.8 2.5 2.5 52.3 50.4 8270 7900 250 D-18 2310 2220

240 0.0754 2.2 1.6 0.8 2.5 2.6 59.0 56.7 10330 9870 250 D-18 2820 2710
300 0.0601 2.4 1.6 0.8 2.5 2.8 63.7 61.4 12480 11950 250 D-18 3360 3230
400 0.0470 2.6 1.6 0.8 2.5 3.0 71.1 68.8 15560 14970 200 D-19 3430 3310

500 0.0366 2.8 1.8 0.8 3.15 3.6 78.8 76.1 19910 19130 200 D-19 4300 4150

* Circular solid conductor (Class 1).
   Conductor including 16 Sqmm circular stranded (Class 2).
   25 Sqmm and above shaped stranded conductors (Class 2).
   All the Cables are insulated with either PVC Type 5 Heat Resisting 85°C compound and sheathed with PVC
   Type 9/ST2 compound OR PVC type A/TI1 compound and sheathed with PVC Type ST1/TM1 compound.
   Drum size given above are for Cables with extruded bedding
   Cables upto 400 Sqmm conform to BS 6346.
   500 Sqmm Cable conforms to IEC 60502 - 1.
