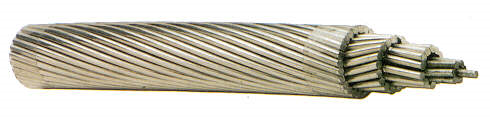

Aluminium Conductors Steel Reinforced (ACSR)

Conductors For Overhead Lines

Aluminium Conductor

Steel Reinforced

(ACSR)

SIZE	Conductor Area		No and Nominal Diameter of Wires		Overall Diameter	Calculated DC Resistance at 20^C(Max.)	Approx.Conductor Weight		Breaking Load	Standard Packing Length	Drum Size	Approx. Gross weight
SIZE	Total	Aluminium	Aluminium	Steel	Overall Diameter	Calculated DC Resistance at 20^C(Max.)	Aluminium	Total	Breaking Load	Standard Packing Length	Drum Size	Approx. Gross weight
	Sqmm		No./mm		mm	Ohm/Km	Kg/Km		KN	Metre±5%		KG
16/2.5	17.9	15.3	6/1.80	1/1.80	5.4	1.8750	42	62	5.8	2000	D-7	170
25/4	27.8	23.8	6/2.25	1/2.25	6.8	1.2060	65	97	9.0	2000	D-8	245
35/6	40.0	34.3	6/2.70	1/2.70	8.1	0.8365	94	140	12.4	2000	D-9	340

44/32	75.7	44.0	14/2.00	7/2.40	11.2	0.6570	122	372	44.1	2000	D-11	845
50/8	56.3	48.3	6/3.20	1/3.20	9.6	0.5941	132	196	16.8	2000	D-10	455
50/30	81.0	51.2	12/2.33	7/2.33	11.7	0.5642	141	378	43.0	2000	D-11	855

70/12	81.3	69.9	26/1.85	7/1.44	11.7	0.4130	193	284	26.3	2000	D-11	670
95/15	109.7	94.4	26/2.15	7/1.67	13.6	0.3058	260	383	35.0	2000	D-12	880
95/55	152.8	96.5	12/3.20	7/3.20	16.0	0.2992	266	712	77.8	2000	D-14	1570

105/75	181.5	105.7	14/3.10	19/2.25	17.5	0.2735	292	891	106.4	2000	D-16	1990
120/20	141.4	121.6	26/2.44	7/1.90	15.5	0.2734	336	494	44.8	2000	D-14	1140
120/70	193.7	122.0	12/3.60	7/3.60	18.0	0.2367	337	901	98.1	2000	D-16	2010

125/30	157.7	127.9	30/2.33	7/2.33	16.1	0.2259	353	591	56.5	2000	D-14	1330
150/25	173.1	148.9	26/2.70	7/2.10	17.1	0.1939	411	605	54.2	2000	D-16	1420
170/40	211.9	171.8	30/2.70	7/2.70	18.9	0.1682	475	794	75.3	2000	D-16	1800

185/30	213.6	183.8	26/3.00	7/2.33	19.0	0.1571	507	746	64.9	2000	D-16	1700
210/35	243.2	209.1	26/3.20	7/2.49	20.3	0.1380	577	850	73.5	2000	D-18	1940
210/50	261.6	212.1	30/3.00	7/3.00	21.0	0.1362	587	981	92.0	2000	D-18	2200

230/30	260.7	230.9	24/3.50	7/2.33	21.0	0.1249	638	877	71.7	2000	D-18	1990
240/40	282.5	243.0	26/3.45	7/2.68	21.9	0.1188	671	987	84.8	2000	D-18	2210
265/35	297.8	263.7	24/3.74	7/2.49	22.4	0.1094	728	1002	81.5	2000	D-18	2240

300/50	353.8	304.3	26/3.86	7/3.00	24.5	0.09486	840	1236	105.0	2000	D-18	2710
305/40	344.1	304.6	54/2.68	7/2.68	24.1	0.09490	843	1160	97.5	2000	D-18	2560
340/30	369.1	339.3	48/3.00	7/2.33	25.0	0.08508	938	1180	91.0	2000	D-18	2600

380/50	431.5	382.0	54/3.00	7/3.00	27.0	0.07568	1056	1458	120.8	2000	D-19	3240
385/35	420.1	386.0	48/2.20	7/2.49	26.7	0.07494	1067	1344	102.8	2000	D-19	3010
435/55	490.6	434.3	54/3.20	7/3.20	28.8	0.06656	1203	1653	133.9	2000	D-21	3730

450/40	488.2	448.7	48/3.45	7/2.68	28.7	0.06434	1241	1561	118.5	2000	D-21	3540
490/65	533.9	490.3	54/3.40	7/3.40	30.6	0.05896	1356	1866	150.2	2000	D-22	4200
550/70	621.3	550.0	54/3.60	7/3.60	32.4	0.05256	1520	2092	167.4	1000	D-18	2330

560/50	611.2	561.7	48/3.86	7/3.00	32.2	0.05140	1553	1954	146.1	1000	D-18	2190
680/85	764.6	678.8	54/4.00	19/2.40	36.0	0.04259	1868	2570	206.4	1000	D-19	2890

Conductors conform to DIN 48204.
