شركة الخليج للكابلات والصناعات الكهربائية

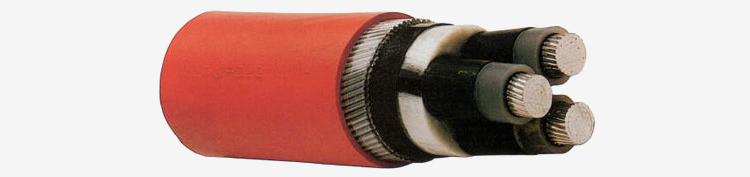

6.35/11 KV - THREE CORE

(HIGHEST SYSTEM VOLTAGE - 12 KV)

ALUMINIUM CONDUCTOR XLPE INSULATED

STEEL WIRE ARMOURED

PVC SHEATHED CABLES

(AL/SC/XLPE/SC/SWA/PVC)

Area of Conductor Nominal	DC Conductor Resistance at 20°C Maximum	Conductor Diameter Approx	Thickness of XLPE Insulation Nominal	Dia of Armour Wire Nominal	Thickness of Outer Sheath Nominal	Overall Diameter Approx	Cable Weight Approx	Standard Packing Length	Drum Size	Gross Weight Approx
Sqmm	Ohm/Km	mm	mm	mm	mm	mm	Kg/Km	Metre±5%		Kg
35	0.868	7.1	3.4	2.5	2.4	46.2	3140	500	D-19	1890
50	0.641	8.2	3.4	2.5	2.5	48.8	3435	500	D-19	2035
70	0.443	10.0	3.4	2.5	2.7	53.7	4035	500	D-19	2340

95	0.320	11.8	3.4	2.5	2.8	57.8	4625	250	D-18	1395
120	0.253	13.2	3.4	2.5	2.9	61.0	5095	250	D-18	1515
150	0.206	14.6	3.4	2.5	3.0	64.2	5610	250	D-18	1640

185	0.164	16.25	3.4	2.5	3.1	68.1	6225	250	D-21	1975
240	0.125	18.8	3.4	3.15	3.3	75.2	8060	250	D-21	2435
300	0.100	20.5	3.4	3.15	3.5	79.3	8945	250	D-22	2705

400	0.0778	23.8	3.4	3.15	3.7	87.2	10595	250	D-23	3150

All conductors circular compacted.
Equivalant voltage designation as per IEC: 60502 - 2 : 6/10 KV
Cables conform to IEC 60502 - 2.
