شركة الخليج للكابلات والصناعات الكهربائية

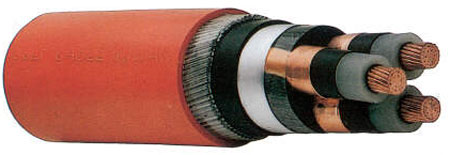

6.35/11 KV - THREE CORE

(HIGHEST SYSTEM VOLTAGE - 12 KV)

COPPER CONDUCTOR XLPE INSULATED

COPPER TAPE SCREENED

STEEL WIRE ARMOURED

PVC SHEATHED CABLES

(CU/SC/XLPE/SC/CUT/PVC/SWA/PVC)

Area of Conductor Nominal	DC Conductor Resistance at 20°C Maximum	Conductor Diameter Approx	Thickness of XLPE Insulation Nominal	Thickness of Extruded Bedding Nominal	Dia of Armour Wire Nominal	Thickness of Outer Sheath Nominal	Overall Diameter Approx	Cable Weight Approx	Standard Packing Length	Drum Size	Gross Weight Approx
Sqmm	Ohm/Km	mm	mm	mm	mm	mm	mm	Kg/Km	Metre±5%		Kg
35	0.524	7.1	3.4	1.3	2.5	2.5	48.3	4160	500	D-19	2400
50	0.387	8.2	3.4	1.4	2.5	2.6	51.1	4765	500	D-19	2700
70	0.268	9.8	3.4	1.4	2.5	2.7	54.8	5615	500	D-21	3225

95	0.193	11.4	3.4	1.5	2.5	2.9	58.8	6705	500	D-22	3820
120	0.153	12.8	3.4	1.6	2.5	3.0	62.2	7690	500	D-23	4345
150	0.124	14.2	3.4	1.6	2.5	3.1	65.5	8780	500	D-23	4890

185	0.0991	15.9	3.4	1.7	2.5	3.2	69.5	10190	250	D-21	2965
240	0.0754	18.5	3.4	1.8	3.15	3.4	77.0	13155	250	D-21	3710
300	0.0601	20.6	3.4	1.9	3.15	3.6	82.4	15495	250	D-23	4375

400	0.0470	23.3	3.4	2.0	3.15	3.8	89.3	18590	250	D-23	5145

All conductors circular compacted.
Equivalant voltage designation as per IEC: 60502 - 2 : 6/10 KV
Cables conform to IEC 60502 - 2.
