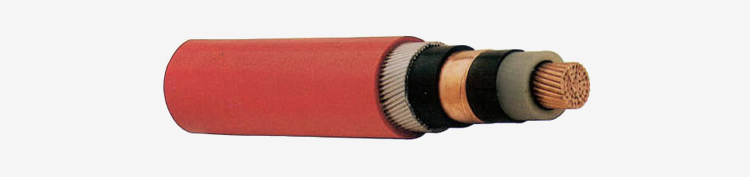

6.35/11 KV - SINGLE CORE

(HIGHEST SYSTEM VOLTAGE - 12 KV)

COPPER CONDUCTOR XLPE INSULATED

COPPER TAPE SCREENED

ALUMINIUM WIRE ARMOURED

PVC SHEATHED CABLES

(CU/SC/XLPE/SC/CUT/PVC/AWA/PVC)

Area of Conductor Nominal	DC Conductor Resistance at 20°C Maximum	Conductor Diameter Approx	Thickness of XLPE Insulation Nominal	Thickness of Extruded Bedding Nominal	Dia of Armour Wire Nominal	Thickness of Outer Sheath Nominal	Overall Diameter Approx	Cable Weight Approx	Standard Packing Length	Drum Size	Gross Weight Approx
Sqmm	Ohm/Km	mm	mm	mm	mm	mm	mm	Kg/Km	Metre±5%		Kg
35	0.524	7.1	3.4	1.2	1.6	1.8	25.6	980	1000	D-16	1190
50	0.387	8.2	3.4	1.2	1.6	1.8	26.7	1130	1000	D-16	1340
70	0.268	9.8	3.4	1.2	1.6	1.9	28.5	1380	1000	D-18	1620

95	0.193	11.4	3.4	1.2	1.6	1.9	30.1	1670	1000	D-18	1910
120	0.153	12.8	3.4	1.2	1.6	2.0	31.7	1945	1000	D-18	2185
150	0.124	14.2	3.4	1.2	2.0	2.1	34.1	2340	1000	D-19	2660

185	0.0991	15.9	3.4	1.2	2.0	2.1	35.8	2735	1000	D-19	3055
240	0.0754	18.5	3.4	1.2	2.0	2.2	38.6	3355	500	D-18	1915
300	0.0601	20.6	3.4	1.2	2.0	2.3	41.0	4030	500	D-18	2255

400	0.0470	23.3	3.4	1.3	2.5	2.4	45.3	5075	500	D-19	2855
500	0.0366	26.5	3.4	1.3	2.5	2.5	48.7	6205	500	D-19	3420
630	0.0283	30.0	3.4	1.4	2.5	2.6	52.6	7620	500	D-19	4130

800	0.0221	34.4	3.4	1.4	2.5	2.8	57.4	9425	250	D-18	2595
1000	0.0176	38.5	3.4	1.5	2.5	2.9	61.9	11540	250	D-18	3125

All conductors circular compacted.
Equivalant voltage designation as per IEC: 60502 - 2 : 6/10 KV.
Cables conform to IEC 60502 - 2.
